Docs/Partner guide/OAuth integration

Neon OAuth integration

You can integrate your application or service with Neon using OAuth. The Neon OAuth integration enables your application to interact with Neon user accounts, carrying out permitted actions on their behalf. Our integration does not require direct access to user login credentials and is conducted with their approval, ensuring data privacy and security.

To set up the integration and create a Neon OAuth application, you can apply on our Partners page. You will need to provide the following information:

  1. Details about your application, including the application name, what it does, and a link to the website.

  2. Callback URL(s), which are used to redirect users after completing the authorization flow.

    Examples:

    https://yourapplication.com/api/oauth/callback

    http://localhost:3000/api/oauth/callback

  3. Scopes, defining the type of access you want to request. We provide scopes for managing both projects and organizations.

    For a list of all available scopes, see Supported OAuth Scopes.

  4. Whether or not you will make API calls from a backend.

  5. A logo to be displayed on Neon's OAuth consent dialog when users authorize your application to access their Neon account.

After your application is reviewed, we will provide you with a client ID and, if applicable, a client secret. Client secrets are only provided for backend clients, so non-backend applications (e.g. browser-based apps or CLI tools) will not receive a secret. These credentials are sensitive and should be stored securely.

How the OAuth integration works

Here is a high-level overview of how Neon's OAuth implementation works:

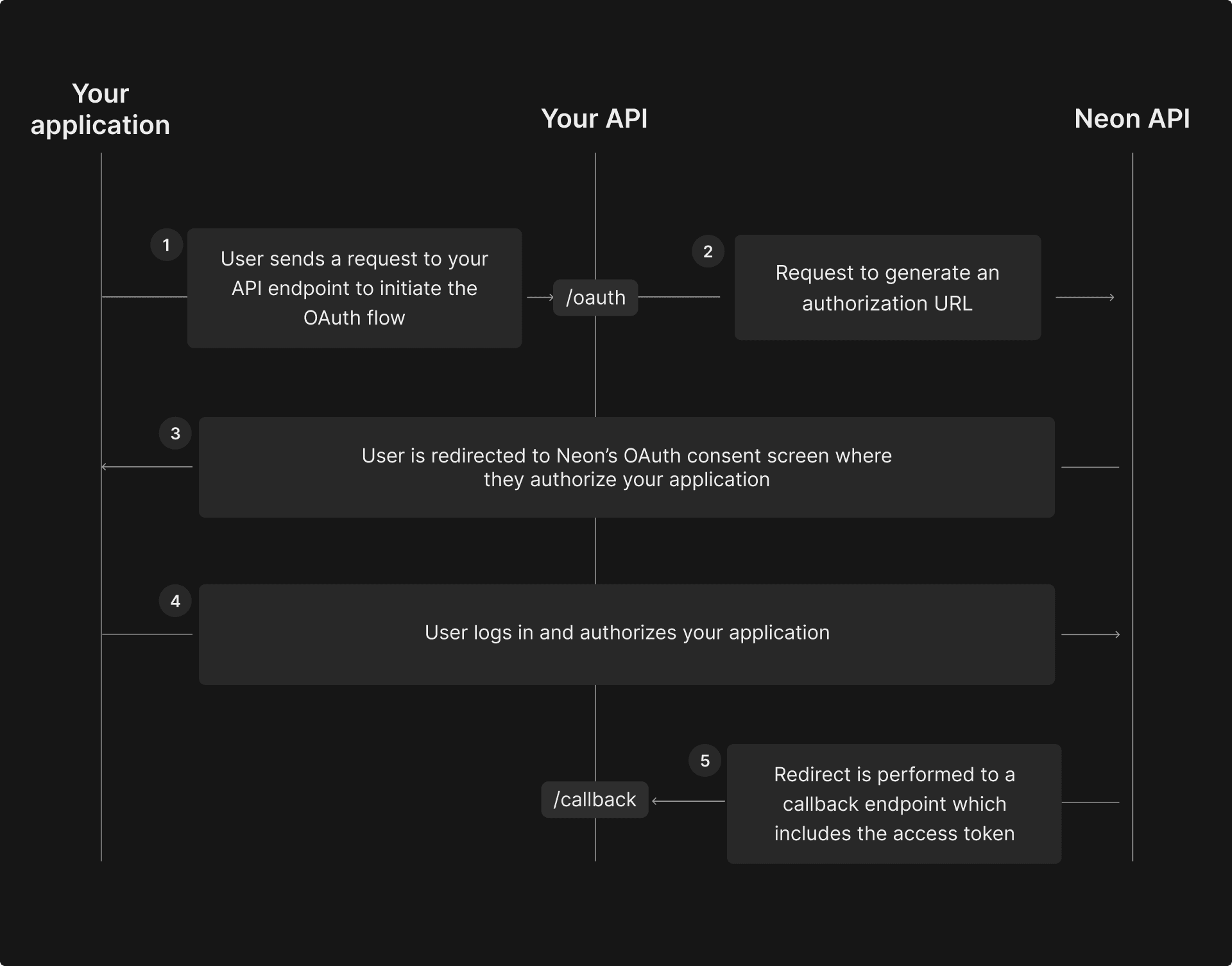

OAuth flow diagram

  1. The user initiates the OAuth flow in your application by clicking a button or link.
  2. An authorization URL is generated, and the user is redirected to Neon’s OAuth consent screen to authorize the application and grant the necessary permissions.
  3. The application receives an access token to manage Neon resources on the user’s behalf.

About the Neon OAuth server

The Neon OAuth server implements the OpenID Connect protocol and supports OpenID Connect Discovery specification. The server metadata is published at the following well-known URL: https://oauth2.neon.tech/.well-known/openid-configuration.

Here is an example response:

{
  "issuer": "https://oauth2.neon.tech/",
  "authorization_endpoint": "https://oauth2.neon.tech/oauth2/auth",
  "token_endpoint": "https://oauth2.neon.tech/oauth2/token",
  "jwks_uri": "https://oauth2.neon.tech/.well-known/jwks.json",
  "subject_types_supported": ["public"],
  "response_types_supported": [
    "code",
    "code id_token",
    "id_token",
    "token id_token",
    "token",
    "token id_token code"
  ],
  "claims_supported": ["sub"],
  "grant_types_supported": [
    "authorization_code",
    "implicit",
    "client_credentials",
    "refresh_token"
  ],
  "response_modes_supported": ["query", "fragment"],
  "userinfo_endpoint": "https://oauth2.neon.tech/userinfo",
  "scopes_supported": ["offline_access", "offline", "openid"],
  "token_endpoint_auth_methods_supported": [
    "client_secret_post",
    "client_secret_basic",
    "private_key_jwt",
    "none"
  ],
  "userinfo_signing_alg_values_supported": ["none", "RS256"],
  "id_token_signing_alg_values_supported": ["RS256"],
  "request_parameter_supported": true,
  "request_uri_parameter_supported": true,
  "require_request_uri_registration": true,
  "claims_parameter_supported": false,
  "revocation_endpoint": "https://oauth2.neon.tech/oauth2/revoke",
  "backchannel_logout_supported": true,
  "backchannel_logout_session_supported": true,
  "frontchannel_logout_supported": true,
  "frontchannel_logout_session_supported": true,
  "end_session_endpoint": "https://oauth2.neon.tech/oauth2/sessions/logout",
  "request_object_signing_alg_values_supported": ["RS256", "none"],
  "code_challenge_methods_supported": ["plain", "S256"]
}

note

You must add offline and offline_access scopes to your request to receive the refresh_token.

Depending on the OpenID client you’re using, you might not need to explicitly interact with the API endpoints listed below. OAuth 2.0 clients typically handle this interaction automatically. For example, the Neon CLI, written in Typescript, interacts with the API endpoints automatically to retrieve the refresh_token and access_token. For an example, refer to this part of the Neon CLI source code. In this example, the oauthHost is https://oauth2.neon.tech.

Supported OAuth Scopes

The following OAuth scopes allow varying degrees of access to Neon resources:

Project scopesScope Name
Create Projectsurn:neoncloud:projects:create
Read Projectsurn:neoncloud:projects:read
Modify Projectsurn:neoncloud:projects:update
Delete Projectsurn:neoncloud:projects:delete
Manage Projectsurn:neoncloud:projects:permission
Organization scopesScope Name
Create Organizationsurn:neoncloud:orgs:create
Read Organizationsurn:neoncloud:orgs:read
Update Organizationsurn:neoncloud:orgs:update
Delete Organizationsurn:neoncloud:orgs:delete
Manage Organization Permissionsurn:neoncloud:orgs:permission

You must choose from these predefined scopes when requesting access; custom scopes are not supported.

1. Initiating the OAuth flow

To initiate the OAuth flow, you need to generate an authorization URL. You can do that by directing your users to https://oauth2.neon.tech/oauth2/auth while passing the following query parameters:

  • client_id: your OAuth application's ID.

  • redirect_uri: the full URL that Neon should redirect users to after authorizing your application. The URL should match at least one of the callback URLs you provided when applying to become a partner.

  • scope: This is a space-separated list of predefined scopes that define the level of access you want to request. For a full list of supported scopes and their meanings, see the Supported OAuth Scopes section.

    Example:

    urn:neoncloud:projects:create urn:neoncloud:projects:read urn:neoncloud:projects:update urn:neoncloud:projects:delete urn:neoncloud:orgs:read
  • response_type: This should be set to code to indicate that you are using the Authorization Code grant type.

  • code_challenge: This is a random string that is used to verify the integrity of the authorization code.

  • state: This is a random string that is returned to your callback URL. You can use this parameter to verify that the request came from your application and not from a third party.

Here is an example of what the authorization URL might look like:

https://oauth2.neon.tech/oauth2/auth?client_id=neon-experimental&scope=openid%20offline%20offline_access%20urn%3Aneoncloud%3Aprojects%3Acreate%20urn%3Aneoncloud%3Aprojects%3Aread%20urn%3Aneoncloud%3Aprojects%3Aupdate%20urn%3Aneoncloud%3Aprojects%3Adelete&response_type=code&redirect_uri=http%3A%2F%2Flocalhost%3A3000%2Fapi%2Fauth%2Fcallback%2Fneon&grant_type=authorization_code&state=H58y-rSTebc3QmNbRjNTX9dL73-IyoU2T_WNievO9as&code_challenge=99XcbwOFU6iEsvXr77Xxwsk9I0GL4c4c4Q8yPIVrF_0&code_challenge_method=S256

After being redirected to the authorization URL, the user is presented with Neon's consent screen, which is pre-populated with the scopes you requested. From the consent screen, the user is able to review the scopes and authorize the application to connect their Neon account.

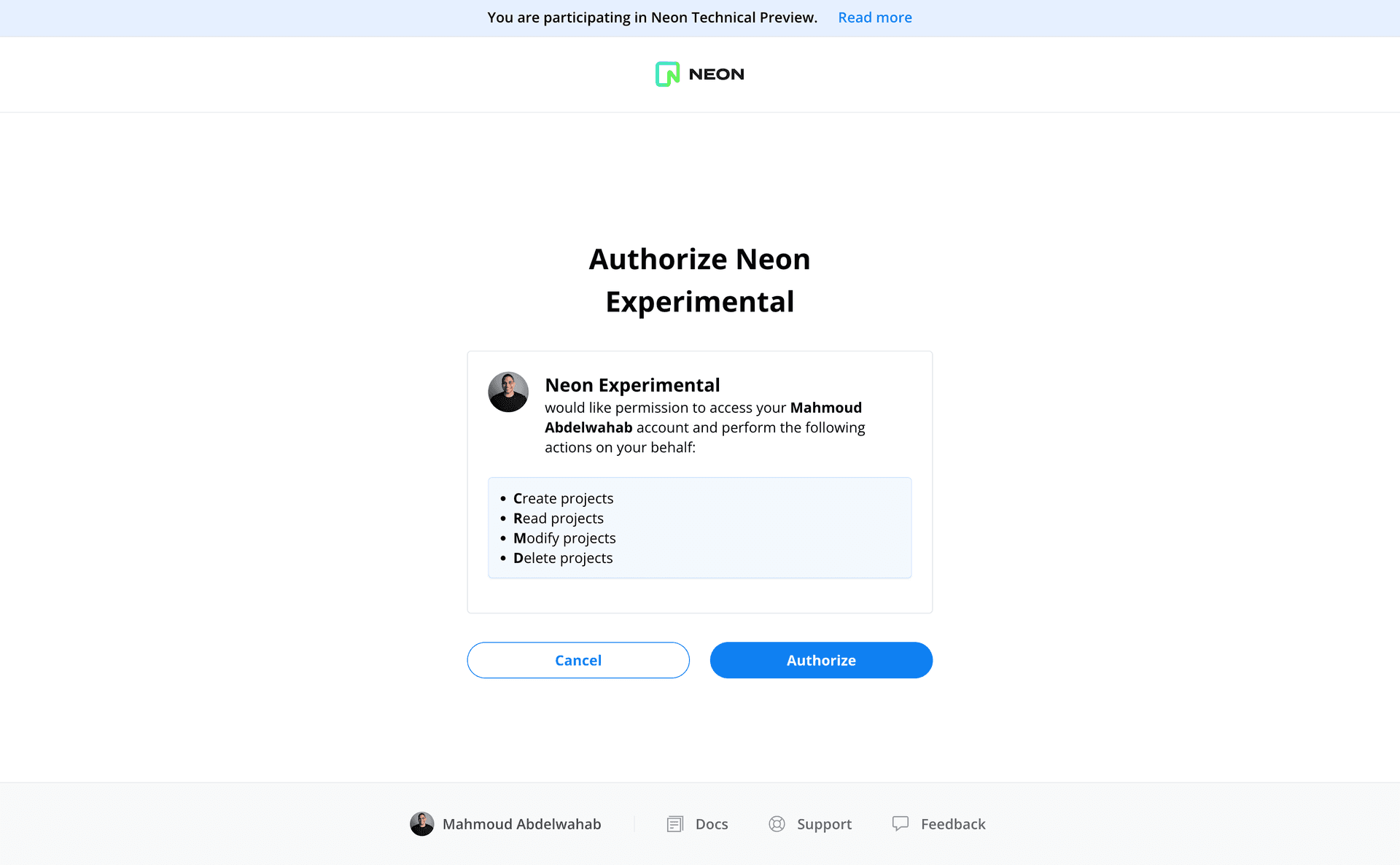

Neon OAuth consent screen

note

The Neon API provides a Get current user details endpoint for retrieving information about the currently authorized Neon user.

2. Authorization code is returned to your callback URL

After successfully completing the authorization flow, the user is redirected to the callback URL with the following query parameters appended to the URL:

  • code: an authorization code that will be exchanged for an access token
  • scope: the scopes that the user authorized your application to access
  • state: you can compare the value of this parameter with the original state you provided in the previous step to ensure that the request came from your application and not from a third party

3. Exchanging the authorization code for an access token

You can now exchange the authorization code returned from the previous step for an access token. To do that, you need to send a POST request to https://oauth2.neon.tech/oauth2/token with the following parameters:

  • client_id: your OAuth application's ID.
  • redirect_uri: the full URL that Neon should redirect users to after authorizing your application. The URL should match at least one of the callback URLs you provided when applying to become a partner.
  • client_secret: your OAuth application's secret
  • grant_type: set this to authorization_code to indicate that you are using the Authorization Code grant type
  • code: the authorization code returned from the previous step

The response object includes an access_token value, required for making requests to the Neon API on your users' behalf. This value must be supplied in the Authorization header of the HTTP request when sending requests to the Neon API.

Example OAuth applications

For an example application that leverages the Neon OAuth integration, see the Visualizing Neon Database Branches application. You can find the application code on GitHub.
